    Tungsten Materials

    Product families under METAL POWDERS and TUNGSTEN OXIDE for Jayanth Tungsten ®. Custom specifications can be made as per order.

    Technical Brochure
    74WTungsten183.84

    Tungsten Properties

    Atomic Number

    74

    Atomic Weight

    183.84 g/mol

    Melting Point

    3,422°C (6,192°F)

    Boiling Point

    5,555°C (10,031°F)

    Density

    19.25 g/cm³

    Crystal Structure

    BCC

    Electron Config.

    [Xe] 4f¹⁴ 5d⁴ 6s²

    Mohs Hardness

    7.5

    Custom specifications

    Share your technical requirement for tungsten metal powders, tungsten oxide powders, APT, sodium tungstate, or related tungsten powders.

    Contact Us
    Tungsten Metal Powder (W)

    Tungsten Metal Powder (W)

    METAL POWDERS

    Tungsten metal powder for diamond tools, core bits, electrical contacts, tungsten copper connectors, counterweights, radiation shielding, and fillers. Specifications can be supplied as per order.

    Key specifications

    Avg. particle size (F.S.S.S. μm)1.5–3 | 4–6 | 8–10 | 12–15
    Apparent density (g/cc)2.5 | 3.4 | 5.1 | 6.2
    W (min. %)99.85
    O (max. %)0.06
    Typical impuritiesFe, Mo, Cu, Na, Ca, Mg, Mn, Zn (max. limits per COA)

    Applications

    Diamond segments (hot pressing, metal matrix retention & cutting)Electrical & FillersTungsten Copper for ConnectorsWeight fillers, counterbalance, induction & radiation shielding fillers
    Full specifications Request quote
    Tungsten Carbide Powder (WC)

    Tungsten Carbide Powder (WC)

    METAL POWDERS

    Powder for graded cemented carbide products and diamond segments — increases hardness and abrasion resistance of tools. Multiple F.S.S.S. and apparent density combinations available; specifications can be tailored to order.

    Key specifications

    Avg. particle size (F.S.S.S. μm)2.5 | 5.0 | 10.0 | 15.0
    Apparent density (g/cc)2.4 | 3.2 | 4.8 | 6.0
    Total C (min. %, bonded)6.11
    Free C (max. %)0.03
    Typical impuritiesFe, Mo, Cu, Na, Co, Ca, Mg, Mn, Zn (max. limits per COA)

    Applications

    Cemented tungsten carbide gradesDiamond segment manufacturingWear-resistant tooling
    Full specifications Request quote
    Fused Tungsten Carbide Powder (W₂C)

    Fused Tungsten Carbide Powder (W₂C)

    METAL POWDERS

    Blackish grey powder with very high hardness and outstanding abrasion resistance. Mesh sizes per ASTM/BSS from −40 to +600 mesh per customer requirement.

    Key specifications

    Mesh sizeASTM/BSS −40 to +600 (to order)
    AppearanceBlackish grey powder
    Apparent density5.90 g/cc
    Melting point (approx.)3000 °C
    Total C (%)3.5 – 4.1
    Free C (max.)0.003%
    WBalance

    Applications

    Diamond core drill bitsHard-surfacing electrodesDiamond tools for very abrasive materialsWear-resistant coatings (e.g. HARDOX-type plate applications)
    Full specifications Request quote
    Ammonium Paratungstate (APT)

    Ammonium Paratungstate (APT)

    TUNGSTEN OXIDE

    Crystalline intermediate produced after refining tungsten raw materials such as concentrates or scrap. Convertible to tungsten oxides and, via hydrogen reduction, to pure tungsten powder.

    Key specifications

    Type (brochure)APT
    Avg. Fisher F.S.S.S. (μm)30.0 – 70.0
    Apparent density (g/in³)30 – 55
    Standard screening−100 mesh
    Carbon (max.)≤ 0.0010
    WO₃ (min.)≥ 88.5
    Other chemistrySee COA — composition tables as supplied in brochure

    Applications

    Tungsten oxide & metal powder productionTungsten chemical processing supply chain
    Full specifications Request quote

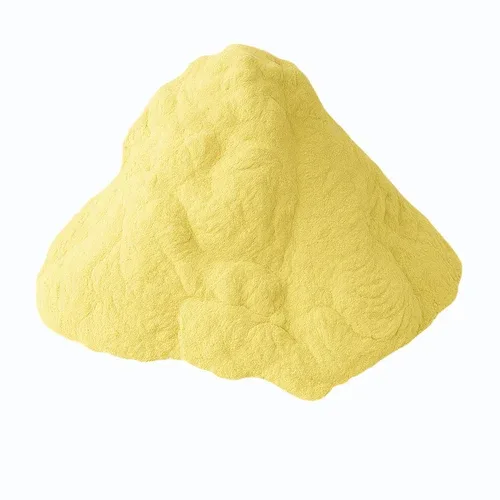

    Tungsten Trioxide (WO₃) / BTO & YTO

    Tungsten Trioxide (WO₃) / BTO & YTO

    TUNGSTEN OXIDE

    Blue tungsten oxide (BTO) and yellow tungsten oxide (YTO / WO₃) are the calcination intermediates between APT and metallic tungsten powder. BTO is the sub-stoichiometric form (approx. WO₂.72–WO₂.9); YTO is stoichiometric WO₃. Both are supplied as reduction intermediates and for catalyst and specialty-chemical applications.

    Key specifications

    BTO appearanceBlue-grey fine powder
    YTO / WO₃ appearanceYellow fine powder
    W content (approx.)~79%
    PurityPer order / COA
    FormCalcined oxide powder

    Applications

    Tungsten metal powder production (H₂ reduction)Catalyst precursorsElectrochromic device materialsSpecialty ceramic pigments
    Full specifications Request quote

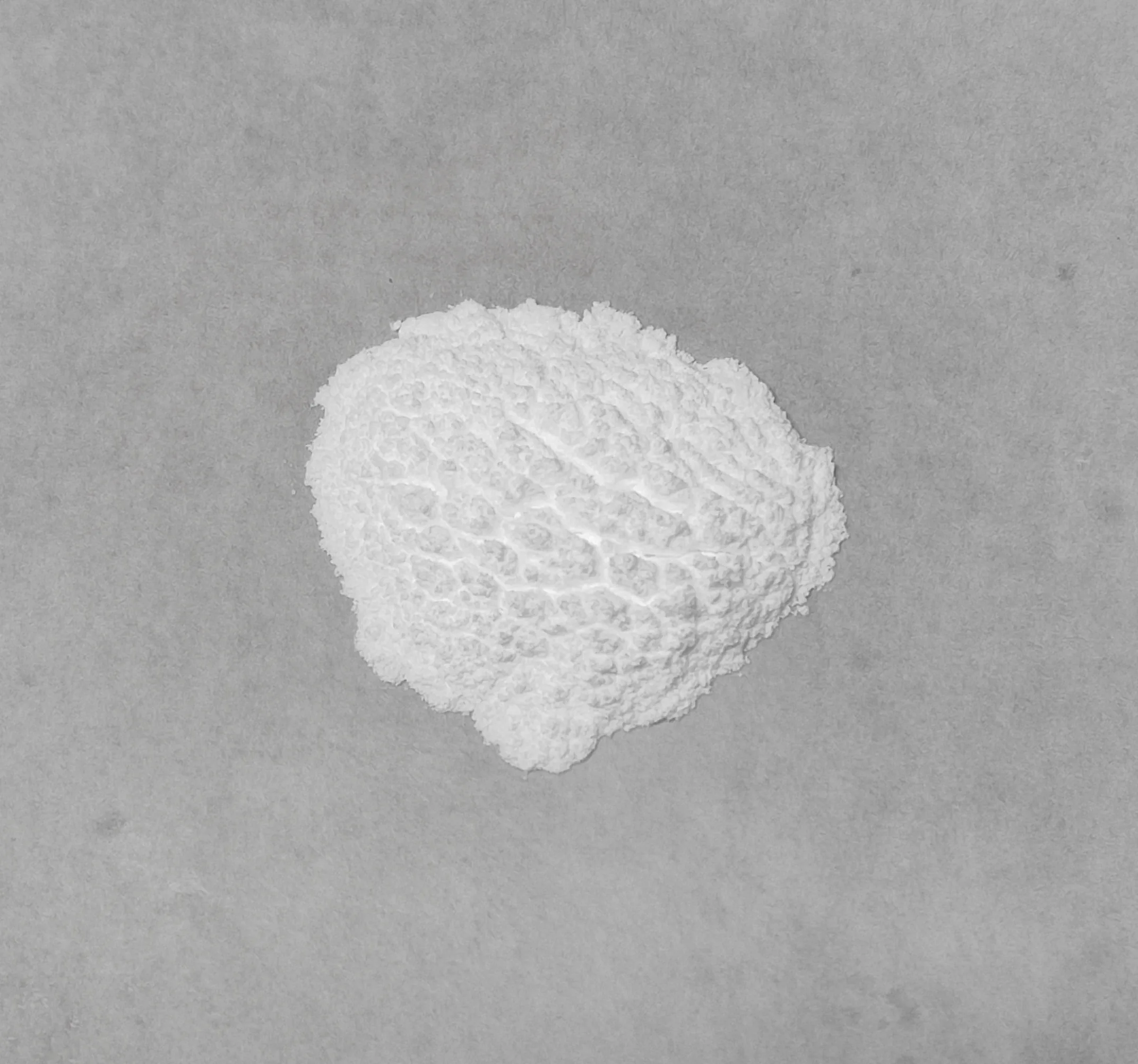

    Sodium Tungstate (Na₂WO₄)

    Sodium Tungstate (Na₂WO₄)

    TUNGSTEN OXIDE

    Sodium tungstate dihydrate is a white crystalline, water-soluble salt used as a precursor for tungstate-based pigments, fireproofing compounds, corrosion inhibitors, and catalysts. Assay ≥ 99% on anhydrous basis.

    Key specifications

    FormulaNa₂WO₄·2H₂O
    Mol. wt.329.86 g/mol
    Assay (min.)≥ 99%
    AppearanceWhite crystalline powder
    SolubilityFreely soluble in water
    WO₃ content (calc.)~71.8%

    Applications

    Inorganic tungstate pigmentsFireproofing & flame retardantsCorrosion inhibitorsCatalyst preparationChemical synthesis
    Full specifications Request quote
    Hard Facing Tungsten Carbide Grit

    Hard Facing Tungsten Carbide Grit

    METAL POWDERS

    Crushed fused tungsten carbide (W₂C) grit for hard-facing electrode coatings, OAW overlays, and wear-protection deposits on mining, oil-field, and agricultural tooling. Macro-grit mesh sizes from 30/40 to 100/120 available to order.

    Key specifications

    FormBlackish grey crushed grit
    Mesh sizes (to order)30/40, 40/60, 60/80, 100/120
    Apparent density5.5 – 6.0 g/cc
    Total C (%)3.5 – 4.1
    Free C (max.)0.003%
    Vickers hardness (approx.)~3 000 HV

    Applications

    OAW hard-facing overlaysMining drill bits & conesOil-field stabilizers & PDC bit bodiesWear-plate claddingAgricultural tillage tools
    Full specifications Request quote

    Quality assurance

    Jayanth Enterprises India Pvt. Ltd. maintains quality systems under ISO 9001:2015. We document product characteristics on certificates of analysis and can arrange third-party test certificates on request, as noted in our brochure.

    For critical applications, share your specification sheets so testing and documentation can be aligned before production and shipment.

    Typical documentation & tests

    Fisher / F.S.S.S. particle sizing
    Apparent density
    Chemical composition & impurities
    Sieve / mesh classification (where applicable)
    Certificates of analysis with shipments
    Third-party test certificates on request
